4 Metre Mono Kits.

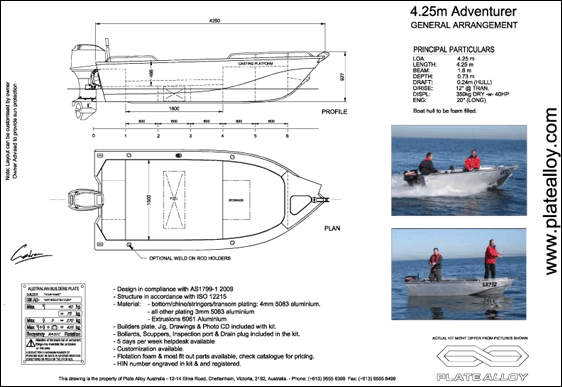

4.25m Adventurer Design.

Specifications:
A tough and versatile Tiller Steer vessel, designed for optimum deck space for the size, with excellent stability. The vessel has a large storage locker under the casting deck, and with a large reverse chine and self draining deck, this vessel is my choice for shallow water fishing with soft plastics.Our demo 'Horny Devil' as we call it, is fitted with a 30Hp two stroke Mercury and performs beautifully.

This boat is made from 3mm 5083 structural grade alloy, frames, sides, bottom, chine and floor. Sun protection can be added by the owner if required.

Brochure (download).

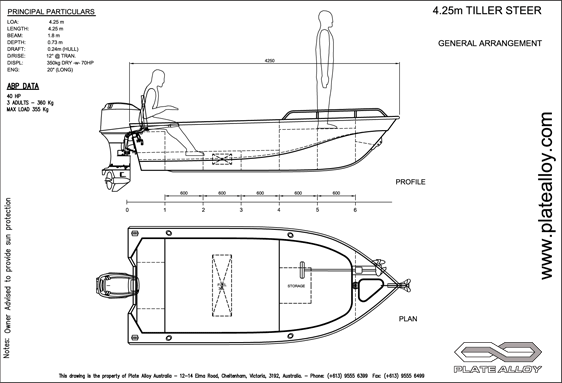

Drawing of the 4.25 Adventurer is in Adobe Acrobat format.

4.25m ADV.PDF - File size is 906K.

Specifications
LOA 4.25 metres
Length -Measured 4.25 metres
Beam 1.8 metres
Draft 0.24 metres
Deadrise 12 degrees
Fuel Approx. 50 litres

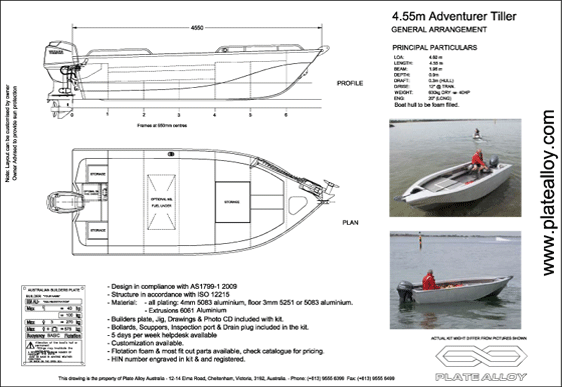

4.55m Adventurer Design.

Specifications:
A tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck.

This boat is made from 4mm structural grade alloy, frames, sides, bottom and chine, with a 3mm floor. Console is by the owner, and a fold-down canopy option is also available.

Brochure (download).
Drawing of the 4.55 Adventurer is in Adobe Acrobat format.

4.6m ADV.PDF - File size is 890K.

Specifications
LOA 4.6 metres
Length -Measured 4.55 metres
Beam 1.96 metres
Draft 0.3 metres
Deadrise 12 degrees
Fuel Approx. 60 litres

4.6m Centre ConsoleDesign.

Specifications:
A tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck.

This boat is made from 4mm structural grade alloy, frames, sides, bottom and chine, with a 3mm floor. Console is by the owner, and a fold-down canopy option is also available.

Brochure (download).

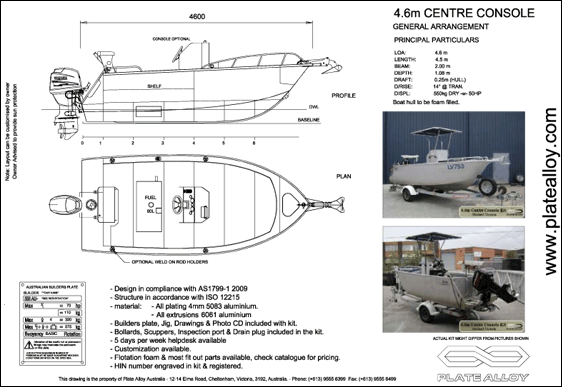

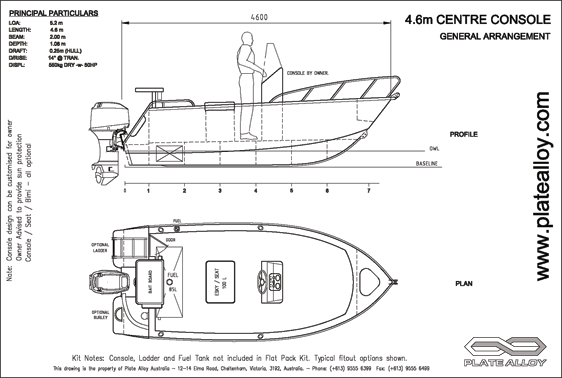

Drawing of the 4.6m Centre Console is in Adobe Acrobat format.

4.6m CCON.PDF - File size is 936K.

Specifications
LOA 4.6 metres
Length -Measured 4.5 metres
Beam 2.0 metres
Draft 0.25metres
Deadrise 14 degrees
Fuel Approx. 60 litres

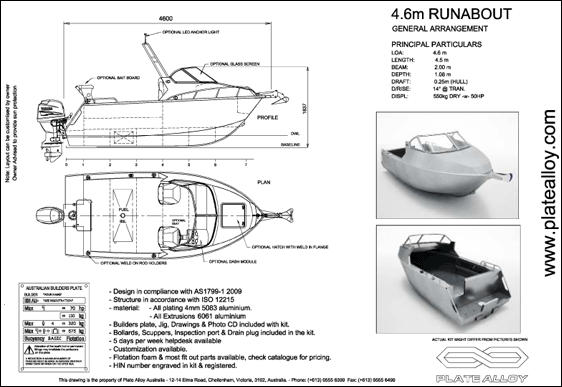

4.6m Runabout Design.

Specifications:
A tough and versitile tiller model with all the plate boat features including a fully developed chine and a self draining deck.

This boat is made from 4mm 5083 Marine grade alloy, frames, sides, bottom and chine, with a 3mm floor. Normally setup with a removable aft seat, this boat has plenty of deck space for centrally mounted tanks seats and lockers. Sun protection is recommended and can be added by the owner.

Brochure (download).

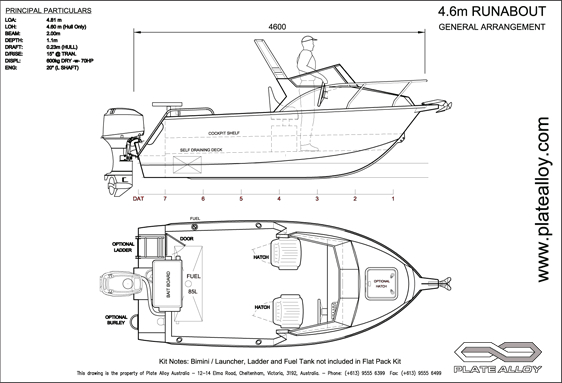

Drawing of the 4.6m Runabout in Adobe Acrobat format.

4.65 RUN.PDF - File size is 972K.

Specifications
LOA 4.6 metres
Length -Measured 4.55 metres
Beam 2.0 metres
Draft 0.25 metres
Deadrise 14 degrees
Fuel Approx. 60 litres

4.65m Tiller Steer Design.

Specifications:
This is our upgraded 2009 version of our 4.8m centre console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp and a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website. Both a light duty and heavy duty "T" Targa top is also available as an option.

Brochure (download).

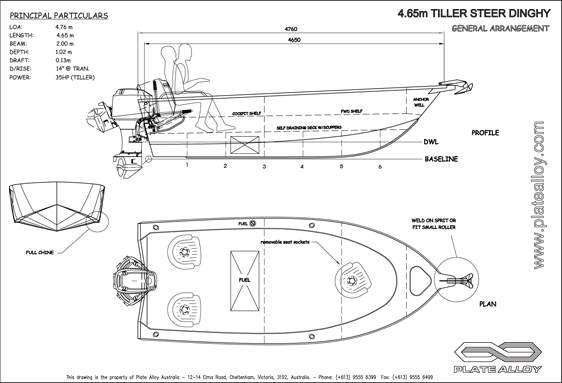

Drawing of the 4.65m Tiller Steeris in Adobe Acrobat format.

4.65m TILL.PDF - File size is 963K.

Specifications
LOA 4.93 metres
Length -Measured 4.65 metres
Beam 2.0 metres
Draft 0.13 metres
Deadrise 14 degrees
Fuel Approx. 60 litres

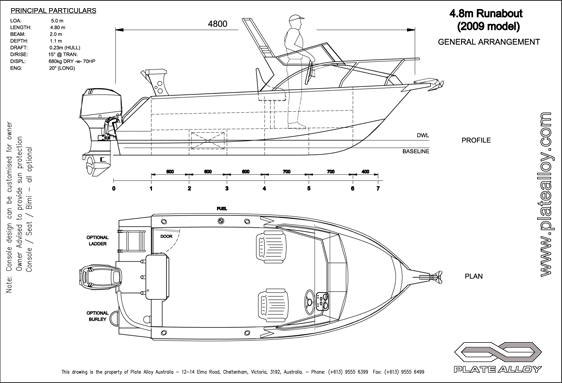

4.8m Runabout Design.

Specifications:
This is our upgraded 2009 version of our 4.8m side console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp on a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website.

Brochure (download).

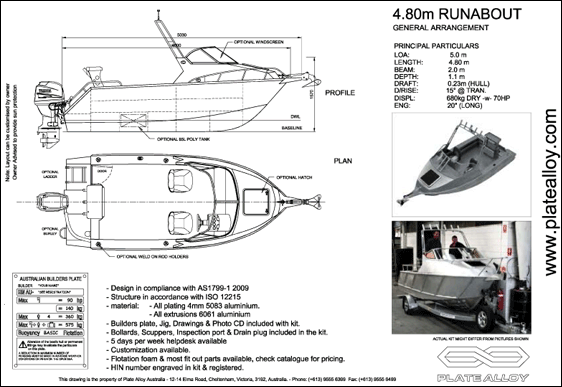

Drawing of the 4.8m Runabout is in Adobe Acrobat format.

4.8m Runabout.PDF - File size is 1.1M.

Specifications
LOA 5.0 metres
Length -Measured 4.8 metres
Beam 2.0 metres
Draft 0.23 metres
Deadrise 15 degrees
Fuel Approx. 70 litres

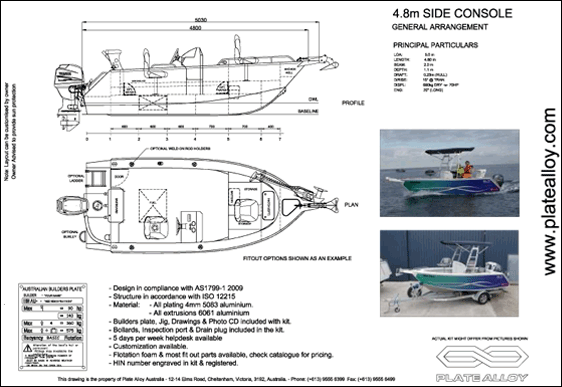

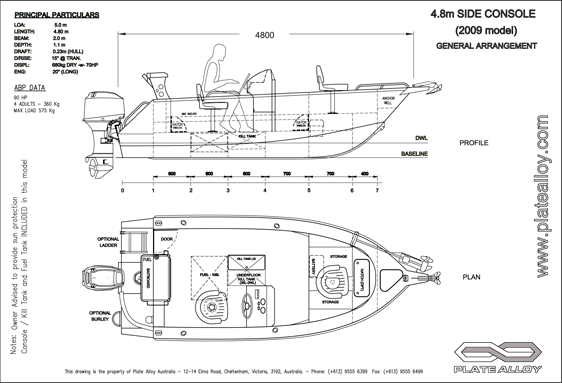

4.8m Side Console Design.

Specifications:
This is our upgraded 2009 version of our 4.8m side console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp on a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website.

Brochure (download).
Drawing of the 4.8m Side Console is in Adobe Acrobat format.

4.8m SCON.PDF - File size is 1.08M.

Specifications
LOA 5.0 metres
Length -Measured 4.8 metres
Beam 2.0 metres
Draft 0.23 metres
Deadrise 15 degrees
Fuel Approx. 70 litres

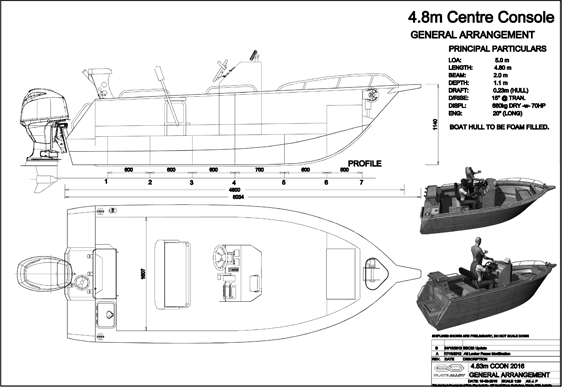

4.83m Centre ConsoleDesign.

Specifications:
This is our upgraded 2016 version of our 4.83m centre console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp on a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website.

Brochure (download).
Drawing of the 4.83m centre consoleis in Adobe Acrobat format.

4.83m CCON.PDF - File size is 1M.

Specifications
LOA 5.0 metres
Length -Measured 4.83 metres
Beam 2.0 metres
Draft 0.23 metres
Deadrise 15 degrees
Fuel Approx. 100 litres

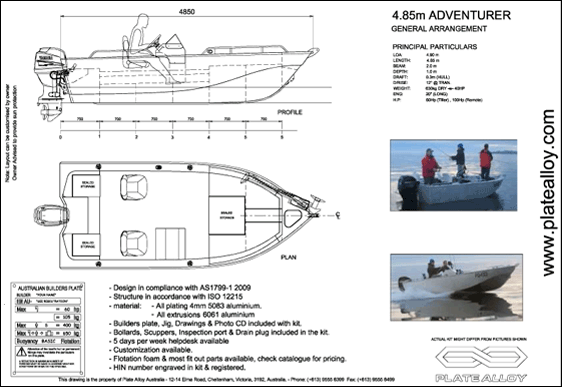

4.85m Adventurer Design.

Specifications:
This is our upgraded 2009 version of our 4.8m side console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp on a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website.

Brochure (download).
Drawing of the 4.8m Adventurer is in Adobe Acrobat format.

4.8m ADV.PDF - File size is 979K.

Specifications
LOA 4.9 metres
Length -Measured 4.85 metres
Beam 2.0 metres
Draft 0.3 metres
Deadrise 12 degrees
Fuel Approx. 100 litres

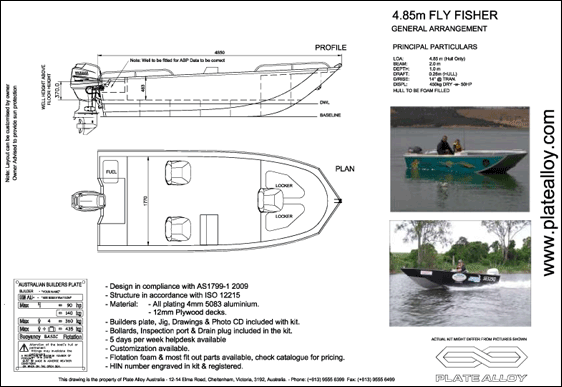

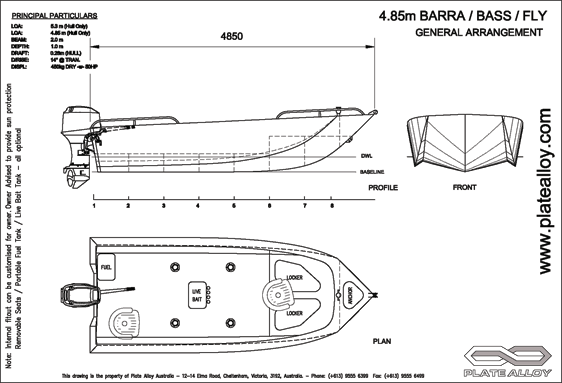

4.85m Fly Fisher Design.

Specifications:
This is our upgraded 2009 version of our 4.8m side console design. It is a tough and versitile centre console design with all the plate boat features including a fully developed chine and a self draining deck. Ideally suited with a 70 Hp on a single axle trailer.

This boat is made from all 4mm 5083 Marine grade alloy. Console is by the owner, and there are several console designs available in the 'Fitout' section of the website.

Brochure (download).
Drawing of the 4.85m Fly Fisher is in Adobe Acrobat format.

4.85m FLY.PDF - File size is 660K.

Specifications
LOA 4.85 metres
Length -Measured 4.85 metres
Beam 2.0 metres
Draft 0.26 metres
Deadrise 14 degrees
Fuel Approx. 70 litres
Note: Information, drawings, designs and specifications are subject to change.
