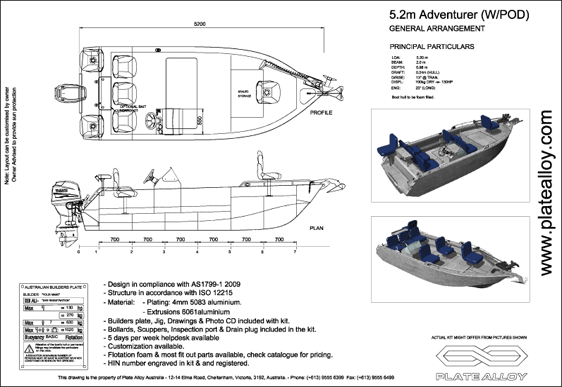

5.2m Adventurer Design.

Specifications:
With focus on stability and a layout to suit barra and creek fishing and offshore reef when conditions are good, this 5.2 Adventurer design takes a bit of beating for those fishing in the Northern parts of Australia. Up front is a casting deck with heaps of storage potential if desired. This vessel with its' self draining deck, can be setup as a side or centre console. A bimini is recommended as an option for sun protection.

Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

Note: Console by owner or we have many models, open and closed configurations in 500, 550, 600, 700, 800, 900 wide - call to discuss

Brochure (download).
Drawing of the 5.2m Adventurer is in Adobe Acrobat format.

5.2m Adventurer.PDF

5.3m Centre Console Design.

Specifications:
With lots of walkaround deck space and deeper sides, self draining deck, this is the high sided model Centre Console is around the largest size for trailering on a single axle trailer with a 90 or 115HP to power it. Setup for and XL engine (25"), this model is available in many options, including with cast deck up front, side console, maxi transom, rear door or no door, an aft centre console version with socketed seat provision is also available.

Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

This 5.3m Centre Console may also be fitted with a fold down launcher / canopy or a "T" targa top as an option. Note: Console is not included in the kit price, but we have many models, 500, 550, 600, 700, 800, 900 wide - call to discuss

Brochure (download).

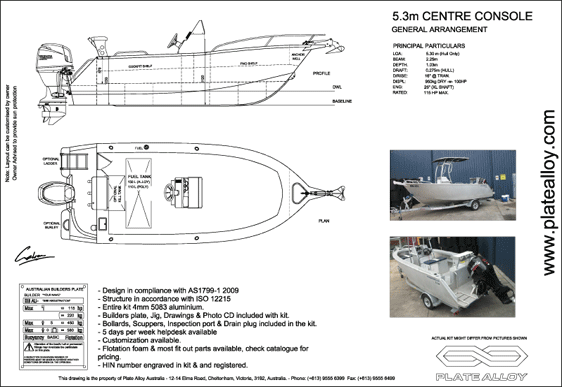

Drawing of the 5.3m Centre Console is in Adobe Acrobat format.

5.3m Centre Console.PDF

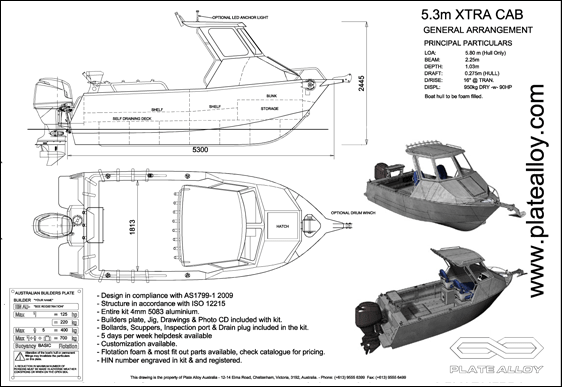

5.3m Xtra Cab Design.

Specifications:
With Focus on fishing space on a medium sized boat that can be trailered on a single axle trailer, this was the requirement, this is what is delivered. With fwd mini bunks / storage up front an an open dash layout the XCab designs have been very popular. The bunk area has lots of storage underneath and also has the facility for seating and or sleeping if a small seat extension is added (an option) . Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

The 5.3 Xcab has high sides, a self draining deck, with protection to get out of the weather. Side clears can be added for additional weather protection if desired.

Brochure (download).
Drawing of the 5.3m XCab is in Adobe Acrobat format.

5.3m XCAB.PDF

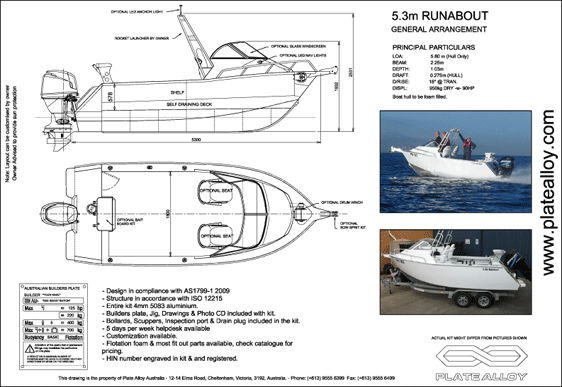

5.3m Runabout Design.

Specifications:
This mid-sized runabout has a lot of room for its size. With plenty of fishing area and a large rear door, this boat is very versatile.With deck space almost equivilant to the 5.8 metre Runabout, this model with a shorter shorter cabin and self draining deck is a very popular design and available with Maxi transom option. Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

This 5.3m Runabout may also be fitted with a fold down launcher / bimini as an option.

Brochure (download).
Drawing of the 5.3m Runabout is in Adobe Acrobat format.

5.3m Runabout.PDF

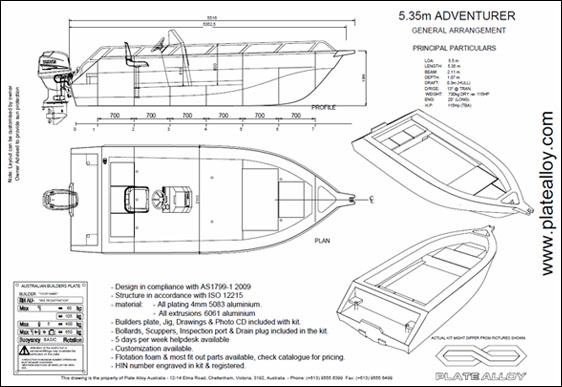

5.35m Adventurer Design.

Specifications:
This larger sized Adventurer model, is based on our 5.2m design, but has 80mm higher sides. With plenty of storage and featuriung rear lockers and a fwd casting deck with storage, there is always somewhere to put the gear. The boat can be setup with deck sockets for removable seating, and this allows you to roll out a swag if you desire. Includes a 600mm console in the kit. Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

This 5.35m Adventurer may also be fitted with a fold down launcher / bimini as an option.

Brochure (download).
Drawing of the 5.35m Adventurer is in Adobe Acrobat format.

5.35m Adventurer.PDF

5.4m Fly Fisher Design.

Specifications:
The Classic Plate Fly Fisher is usually fitted with removable seat bases and a live bait tank. Along with a raised forward casting deck and an option for fwd underfloor storage, this boat also has a sealed, self draining deck with rear scuppers. Large reverse chines on this model make for excellent stability. Can be set up as a side console or centre console. Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate.

This 5.4m Fly Fisher may also be fitted with a fold down launcher / canopy if desired.

Brochure (download).

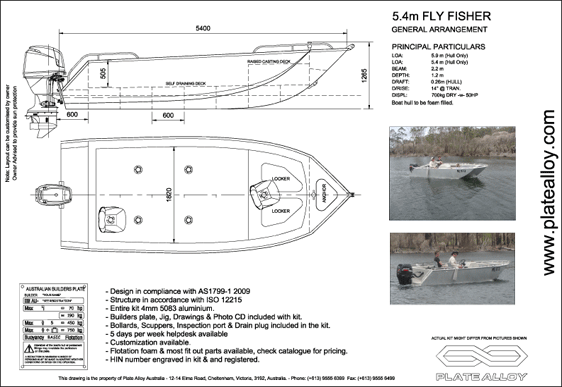

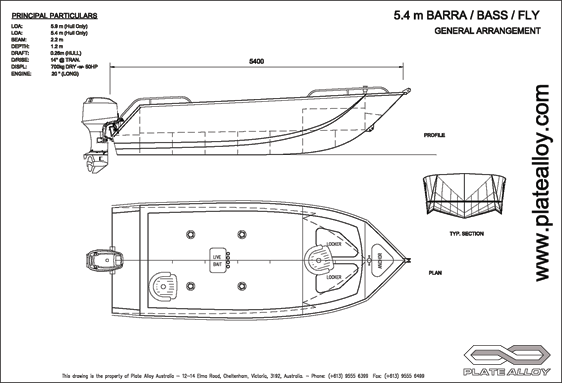

Drawing of the 5.4m Fly Fisher design is in Adobe Acrobat format.

5.4m Fly Fisher.PDF

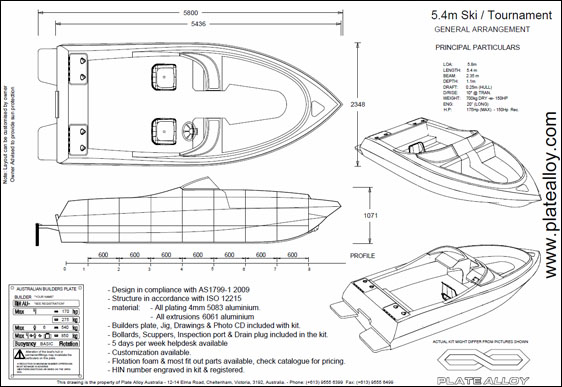

5.4m Ski-Tournament Design.

Specifications:
For those who like the idea of a day with the kids for some fun watersports, then some serious fishing the next day when the kids are in need of a day off, then this Ski-Tournament design is the answer. With a forward lounge up front and twin side consoles it can transform from a ski boat to a Tournament boat in minutes. For watersports, a ski pole can be dropped in, a rear seat added and cushions up front make a great day out for family fun. For fishing, a removable ply cast deck is dropped on top of the forward lounge, forward cushions out, rear seat out, ski pole out, bait board in, Minn Kota on, then it is ready to fish. The boat has the advantages of the plate alloy strength and durability, and this boat has a wide beam, is stable and low sided means it does not get blown around too much when flicking plastics into the shallows.

This 5.4 Ski-Tournament may also be fitted with a fold down launcher / canopy if desired.

Brochure (download).
Drawing of the 5.4 Ski/Tournament design is in Adobe Acrobat format.

5.4m SKI-Tournament .PDF

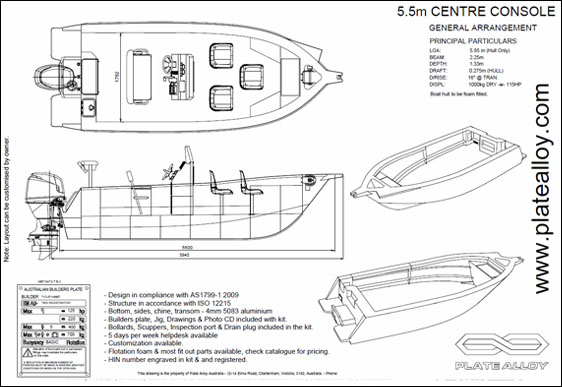

5.5m Centre Console Design.

Specifications:
The design brief was just a little more room, in a boat that is made from all 4mm plate, and can still be trailered on a single axle trailer. The design comes in several variants, and can included a rear door or no door if so desired. It also can have a forward casting deck if so desired. We have several design layouts for this popular model, best to call us to discuss exactly how you like your boat setup. Features all the usual heavy duty gear, self draining deck, underfloor tank, full reverse chine, etc.. We have many console options, in centre and side console configuration. For centre consoles, we have designs for open, closed, swept back, open top, in 500, 600, 650, 700, 800, 900, 1000mm.. options. Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate. This 5.5 Centre Console may also be fitted with a Tee top canopy if desired.

Brochure (download).
Drawing of the 5.5 Centre Console design is in Adobe Acrobat format.

5.5m CCON .PDF

5.5m Runabout Design.

Specifications:
For those who like the open style dash of the XCab, this 5.5m Runabout has great fishing space, self draining deck and includes seat boxes, bait board, dive door, maxi transom, and provision for over 100L of fuel underfloor. The forward storage - mini bunk area, with the addition of a ply extension, would allow an overnight fish if desired. Boat bottom plates, chine, sides, gunwhales and floors all made from 4mm 5083 plate. The kit is supplied with 8mm alloy bow sprit, 700mm welded bait board kit, side shelves, provision for live bait tank, heavy duty plate tow eye, dash module, CNC cut ply bunk lids, seat boxes and aluminium extrusions including rolled coamings.

This 5.5 Runabout design may also be fitted with a fold down screen, also a folding launcher / canopy if desired.

Brochure (download).
Drawing of the 5.5 Runabout design is in Adobe Acrobat format.

5.5m RUN .PDF

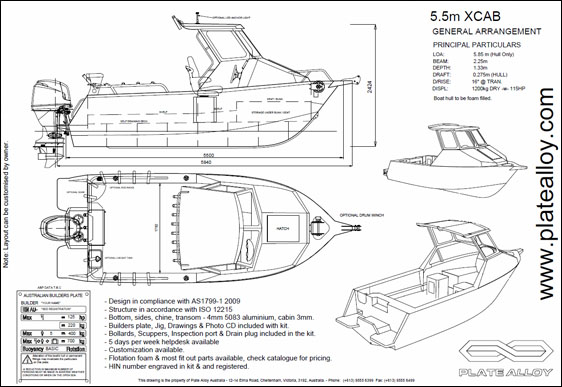

5.5m XCab Design.

Specifications:
A slightly larger version of the 5.3 Xcab, this open dash style design is also made using 4mm plate to keep the trailer weight down. On the limit of single axle trailering, this hardtop design has a layout that is premium for the serious fisherman.

The kit is supplied with 8mm alloy bow sprit, 700mm welded bait board kit, side shelves, provision for live bait tank, heavy duty plate tow eye, dash module, CNC cut ply bunk lids, seat boxes and aluminium extrusions including rolled coamings.

Brochure (download).
Drawing of the 5.5m XCab design is in Adobe Acrobat format.

5.5m XCAB.PDF

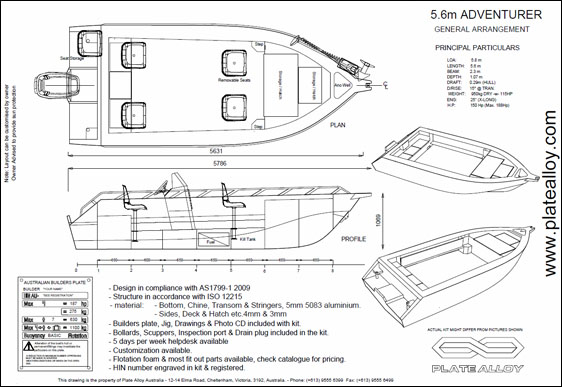

5.6m Adventurer Design.

Specifications:
The brief was a slightly larger version of the 5.35 Adventurer. Setup with seat storage on the transom, this larger adventurer model has 5mm bottom plates, chine and stringers and 4mm plate for the rest of the main plates. Setup with 3 rear lockers aft and 2 lockers on the casting deck, the layout is premium for the serious "Barra" fisherman, with plenty of storage, removable socketed seating with small rear casting deck and large forward casting deck.

This 5.6m Adventurer has self draining deck, underfloor fuel tank and includes flush bow sprit, console, side shelves, all extrusions, rolled coamings. The hatch lids are included and require folding, best to call to discuss if you have any questions, there is also a wide beam version available.

Brochure (download).
Drawing of the 5.6m Adventurer design is in Adobe Acrobat format.

5.6m Adventurer.PDF

5.8m Centre Console Design.

Specifications:
A versatile heavy duty Centre Console, this layout is premium for the serious fisherman. It features 5mm bottom plates, chine and transom and 4mm for the frames, sides, decks and gunwhales. The kit is supplied with 8mm alloy bow sprit, 700mm welded bait board kit, side shelves, provision for Live Bait tank, heavy duty plate tow eye, and aluminium extrusions including rolled coamings.

This 5.8m Centre Console may also be fitted with a fold down launcher / canopy or a "T" targa top as an option.

Note: Console by owner or we have many models, open and closed configurations in 500, 550, 600, 700, 800, 900 wide - call to discuss

Brochure (download).

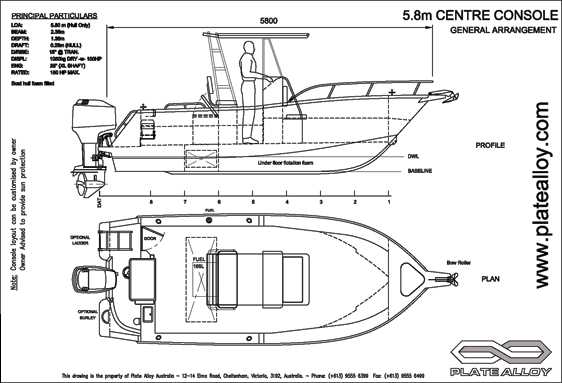

Drawing of the 5.8m Centre Console Design is in Adobe Acrobat format.

5.8m Centre Console.PDF

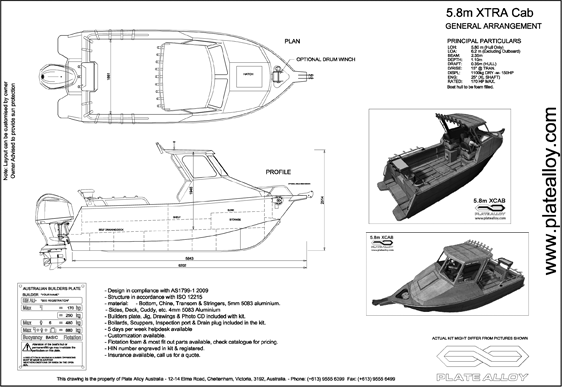

5.8m XCAB Design.

Specifications:
Setup with the Maxi transom as standard, the rear door can be added if required, this layout is premium for the serious fisherman. The layout is designed for those in the Southern states who do not have the good weather as those up North. It features 5mm bottom plates, chine and transom and 4mm for the frames, sides, decks and gunwhales. The kit is supplied with 8mm alloy bow sprit, 700mm welded bait board kit, side shelves, provision for Live Bait tank, seat boxes, heavy duty plate tow eye, dash module, and aluminium extrusions including rolled coamings.

This 5.8m XCab can be fitted with side clears if required for additional weather protection This boat has self draining deck, underfloor fuel tank and can be optioned with a live bait tank and a drum winch up front.

Brochure (download).
Drawing of the 5.8m XCab design is in Adobe Acrobat format.

5.8m XCAB.PDF

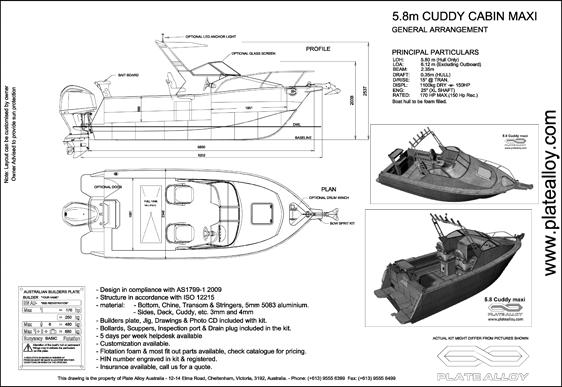

5.8m Cuddy Cabin Design.

Specifications:
Styled on the same popular 5.8m hullform, this cuddy cab has a 1800mm bunk inside a cabin that can be made lockable. This layout is ideal for the family or those wanting provision for an enclosed cabin / bunk area. It also has the self draining deck, and the kit includes seat boxes, baitboard, bow sprit, drum winch provision, underfloor tank provision and the option for a rear locker under the baitboard and rear door option.

It features 5mm bottom plates, chine and transom and 4mm for the frames, sides, decks and gunwhales.

The 5.8m Cuddy Cab is setup for a see through screen, and may also be fitted with a fold down launcher / canopy.

Brochure (download).
Drawing of the 5.8m Cuddy Cabin design is in Adobe Acrobat format.

5.8m Cuddy Cabin.PDF

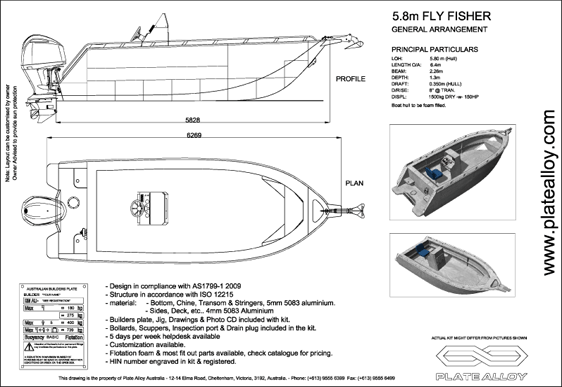

5.8m Fly Fisher Design.

Specifications
For those who like something different, this 5.8m Fly Design has massive deck space, self draining deck and with a 8 degree deadrise is a vey stable vessel. Ideally suited to centre or side mounted console, this design has space for plenty of storage if desired. A casting deck is an option, and customers can advise cast deck height and length when ordering the kit.

This 5.8m Barra / Fly Design may also be fitted with a fold down bimini if desired.


Brochure (download).
Drawing of the 5.8m Fly Fisher Design is in Adobe Acrobat format.

5.8m Fly.PDF

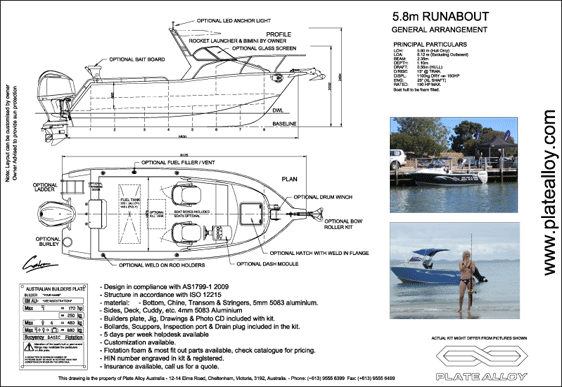

5.8m Runabout Design.

Specifications:
A popular heavy duty runabout design with full width dash and flat floor underside, ideal for crate storage. The kit can be supplied with or without a rear door, and features self draining deck, underfloor tank and includes the usual items like seat boxes, 700mm welded baitboard, bow sprit, provision for drum winch and live bait tank, also the option for a rear locker under the baitboard or full width rear shelf.

This runabout design is one of our most popular models, capable of bluewater fishing or a day out with the family.

This boat has a lot of deck space and may also be fitted with a fold down launcher / canopy if desired.

Brochure (download).
Drawing of the 5.8m Runabout design is in Adobe Acrobat format.

5.8m Runabout.PDF

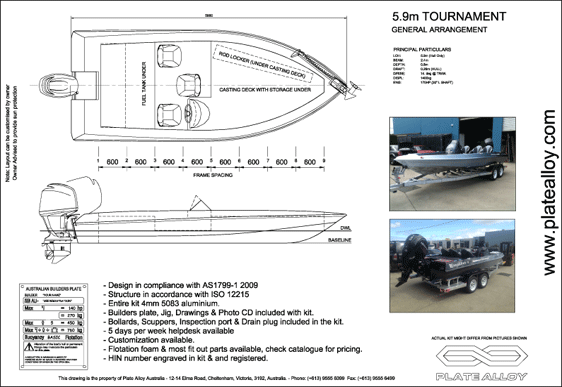

5.9m Tournament Design.

Specifications:
For those serious Tournament anglers who want a durable aluminium craft, this is the answer. With provision for a large rod locker, the 5.9m is big on performance. The kit is supplied with ply deck and ply fwd lockers, owners can customise the deck to suit their needs. Supplied with a small side console.

Supplied with the bottom plates, sides, chine, transom, stringers and gunwhales all 4mm 5083 plate.

Brochure (download).
Drawing of the 5.9m Tournament design is in Adobe Acrobat format.

5.9m Tournament.PDF

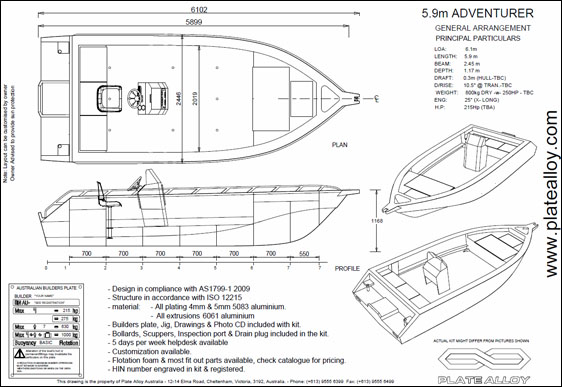

5.9m Adventurer Design.

Specifications:
The brief was a full 600 bay longer than the 5.35 Adventurer. Setup with seat storage on the transom, this larger adventurer model has 5mm bottom plates, chine and stringers and 4mm plate for the rest of the main plates. Setup with 3 rear lockers aft and 2 lockers on the casting deck, the layout is premium for the serious "Barra" fisherman, with plenty of storage, removable socketed seating with small rear casting deck and large forward casting deck.

This 5.6m Adventurer has self draining deck, underfloor fuel tank and includes flush bow sprit, console, side shelves, all extrusions, rolled coamings. The hatch lids are included and require folding, best to call to discuss if you have any questions.

Brochure (download).
Drawing of the 5.9m Adventurer is in Adobe Acrobat format.

5.9m Adventurer.PDF

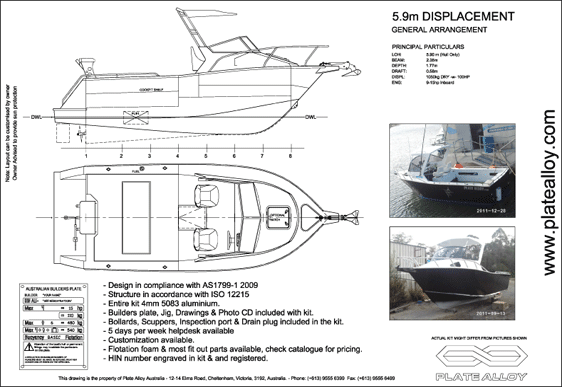

5.9m Displacement Design.

Specifications:
This Runabout cab layout in a displacement craft is a styled on our 5,.8m runabout planning design but with a displacement hull. Designed to be setup as shaft drive with a small 15-30HP engine, the design is ideal for those who do a lot of trolling. Good deck space and access to engine well under a raised section provides a good workable design which is easy to build and very cheap to run.

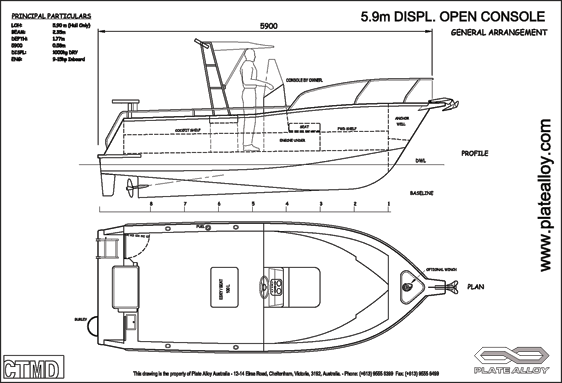

Windscreen is an optional extra, and may also be fitted with a fold down launcher / canopy. Also available as a hardtop or centre console layout, call to discuss.

Brochure (download).

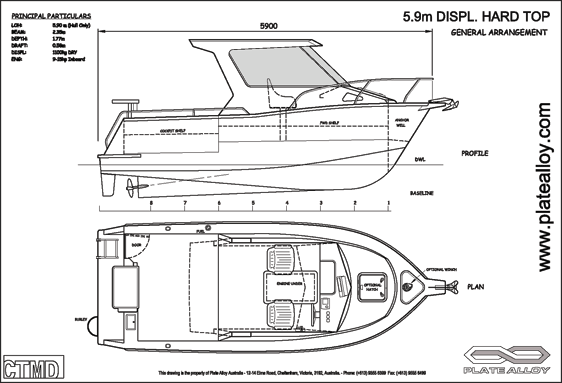

Drawing of the 5.9m Displacement design is in Adobe Acrobat format.

5.9m Displacement.PDF

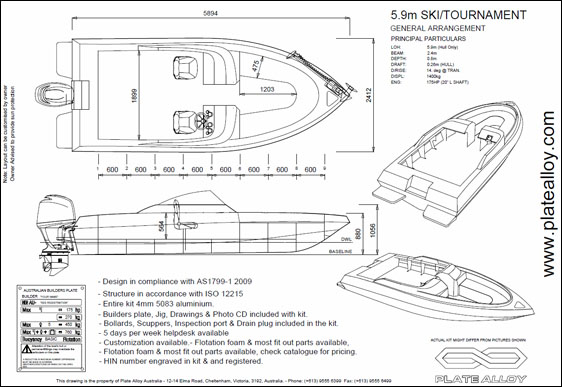

5.9m Ski Design.

Specifications:
This larger ski boat is a variant of the popular and proven 5.9m Tournament hull. With a twin side console setup, the boat can also be used for fishing if a drop in ply cast deck is added.

The rear can include 2 hatches for day esky and live bait tank, you could also add in a rear lounge.

The boat could be fitted with a fold down launcher / canopy. Also available as a hardtop or centre console layout, call to discuss.

Brochure (download).
Drawing of the 5.9m Ski boat is in Adobe Acrobat format.

5.9m Ski.PDF
